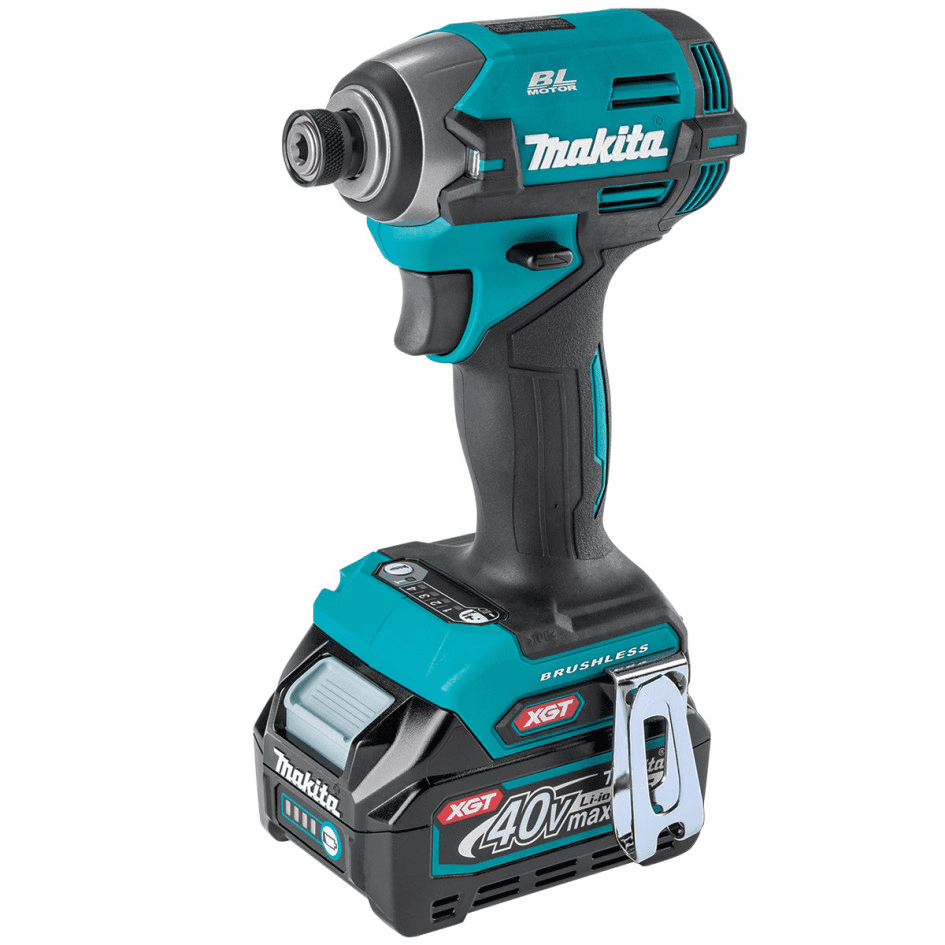

Makita TD003GZ 40V Cordless Brushless Impact Driver (XGT Series) [Bare Tool]

Bare Tool – Battery and Charger not included
Features:
40Vmax XGT BL Cordless T-Mode 210 N·m (1,860 in.lbs.) Impact Driver
Combination of sufficient fastening performance and high cost-competitiveness achieved by carefully selecting the functions
Aluminum hammer case + Black bumper
“Simple impact power selection:
4 modes (Max/ Hard/ Medium/ Soft for bolt)
1 T-mode (for thin metal only)”
“Max fastening torque: 210 N·m
Despite increased cost-competitiveness, the max fastening torque is close to that of TD001G, the flagship model of our XGT Impact drivers
Extended overall length ensures sufficient performance of hammer, enabling to outperform TD001G in heavy-duty operation”
“Light mode
To turn on the light, set F/R change lever in the neutral position, then pull the switch trigger. To turn off the light, pull the switch trigger again
The light turns off automatically one hour after turned on”
One LED job light each on both sides with pre-glow and after-glow functions
Excellent performance in continuous heavy-duty operation
High power 40Vmax XGT Li-Ion battery reduces the current load on the controller, allowing for continuous heavy-duty operation
Constant speed control allows to operate the tool at the same speed as that at which you operate the tool on a full charged battery, even when the remaining battery capacity becomes low
“One-touch bit installation
Smoother installation of the bit has been achieved by reducing the resistance against insertion of the bit
By increasing the load of sleeve holding spring, we have reduced the chance of unexpected falling off of the bit”
Anti-bit wobbling structure
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Variable speed control by trigger for precise fastening in a wide variety of applications
Ergonomically designed handle with rubberized soft grip for increased comfort
Reversing switch is conveniently located
Durable, reversible belt clip convenient for temporary tool hanging
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
“Electric brake for maximum productivity
Trigger lock function
Anti-restart function
Overload protection (fuse)
A-mode (Assist mode)
Tool-less bit change
Automatic impact stop system (Available in T-mode which is for driving self-drilling screw in thin metal only)
Battery protection circuit protects against overloading, over-discharging and over-heating”
Specifications:
CAPACITY
Machine screw: M4 – M8 (5/32 – 5/16″)
Standard bolt: M5 – M16 (3/16 – 5/8″)
High strength bolt: M5 – M14 (3/16 – 9/16″)
Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″)
Steel: 22 mm (7/8″)
Wood (Auger bit): 24 mm (15/16″)
Wood (Self-feed bit): N/A mm (N/A”)
MASONRY DRILL DIAMETER
N/A mm (N/A”)
HOLE SAW DIAMETER
38 mm (1-1/2″)
SHANK/DRIVE
Hex Shank 6.35 mm (1/4″)
NO LOAD SPEED (RPM)
Max / Hard / Med. / Soft / T mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 2,400
IMPACTS PER MINUTE (IPM)
Max / Hard / Med. / Soft / T mode: 0 – 4,100 / 0 – 3,600 / 0 – 2,600 / 0 – 1,400 / N/A
FASTENING TORQUE
Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
MAX FASTENING TORQUE
210 N·m (1,860 in.lbs.)
MAX OUTPUT
520 W
VIBRATION LEVEL
Impact tightening of fasteners of the maximum capacity of the tool: 11.9 m/s²
VIBRATION K FACTOR
Impact tightening of fasteners of the maximum capacity of the tool: 1.5 m/s²
SOUND PRESSURE LEVEL
95 dB(A)
SOUND POWER LEVEL
106 dB(A)
NOISE K FACTOR
3 dB(A)
DIMENSIONS (L X W X H)
w/o Battery: 121 x 86 x 195 mm (4-3/4 x 3-3/8 x 7-5/8″)
w/ BL4020 / BL4025: 121 x 86 x 245 mm (4-3/4 x 3-3/8 x 9-5/8″)
w/ BL4040: 121 x 86 x 252 mm (4-3/4 x 3-3/8 x 9-7/8″)
w/ BL4050F: 121 x 86 x 274 mm (4-3/4 x 3-3/8 x 10-3/4″)
w/ BL4080F: 121 x 86 x 293 mm (4-3/4 x 3-3/8 x 11-1/2″)
NET WEIGHT
1.7 – 2.9 kg (3.7 – 6.4 lbs.)
