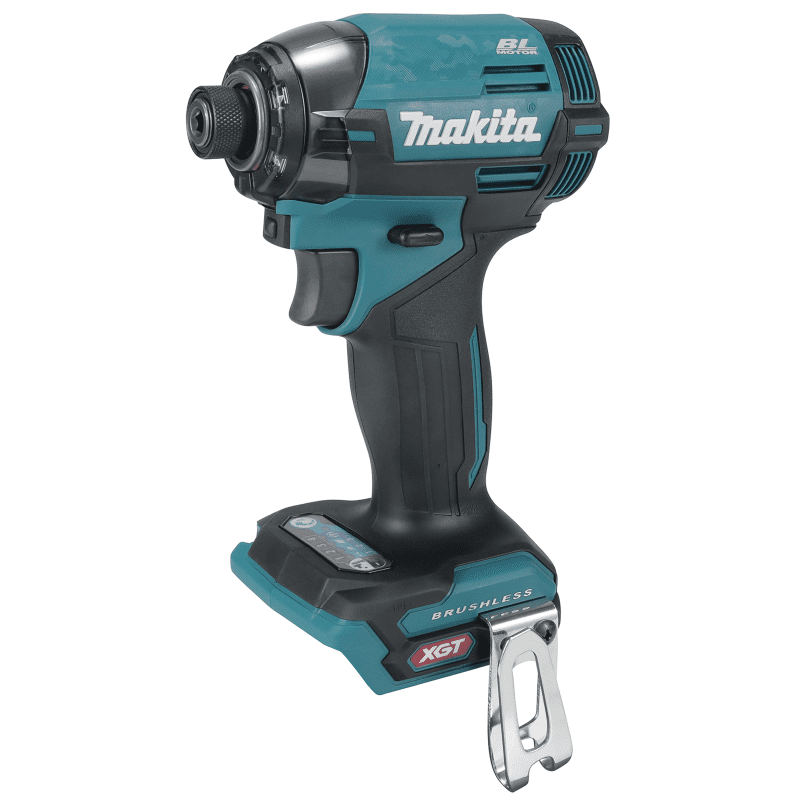

Makita TD002GZ01 40V Cordless Brushless Impact Driver XGT Series) [Bare Tool]

Bare Tool – Battery and Charger not included
Features:
40Vmax XGT BL Brushless Cordless Wood/Bolt/T-Mode 220 N·m (1,950 in.lbs.) Impact Driver
More comfortable operation in a wide range of applications from light-duty screw tightening to heavy-duty metal fastening
Dual spring technology
The hammer is designed to be driven by a dual spring unit consisting of two types of springs with different load capacities
The hammer is driven by one spring in light-duty operation, and by two springs in heavy-duty operation. Thus, the impact power is adjusted according to the workload, providing added comfort in a wide range of applications from delicate screw tightening to heavy-duty metal fastening
The above-mentioned optimal impact blow suppresses increase in recoil and vibration, which occur after the tool starts impact blow
(The two effects have been confirmed through the tests using 120 mm coarse thread screw)
4 LEDs on the front of tool head
Brighter illumination on the workpiece obtained by:
locating 4 LEDs on the front of tool head
reducing projections that project from both sides of tool head and body
Higher visibility of the workpiece achieved by using a newly designed LED lens to make the shadow of bit lighter
With preglow and afterglow functions
3 brightness settings
Increased screw tightening speed
Compared with our current models, increased screw tightening speed has been achieved by increasing the number of impacts in Mode 4 (Max impact mode)
New appearance design
The current design has been changed by adding camouflage pattern and more
Light mode
To turn on the light, set F/R change lever in the neutral position and pull the switch trigger. To turn off the light, pull the switch trigger again
The light turns off automatically one hour after turned on
New one-touch bit installation
Reduced resistance allows for easier bit installation
High Power 220 N·m
Genuine solution for high demand industrial users
Having excellent ability to perform heavy-duty continuous tightening; Able to continuously tighten heavy duty screws such as metal fastening screws or lag screws
Multiple operation modes for a wide range of applications; 4-speed power selection plus 6 Assist modes (2 T-modes, 1 Wood mode, 3 Bolt modes)
Improved bolt modes for more convenience in tightening machine screws
Constant speed control maintains fastening torque by minimizing the rotation speed reduction caused by decreased battery capacity
One-touch speed selector provides precise fastening control for a wide range of applications
Enhanced anvil holder rigidity; Material change from Needle bearing to Ball bearing provides reduction of bit wobbling
Variable speed control by trigger for precise fastening in a wide variety of applications
Ergonomically designed handle with rubberized soft grip for increased comfort
Reversing switch is conveniently located
Auto-stop in bolt mode (both in Forward/Reverse rotations)
Electric brake for maximum productivity
Trigger lock minimizes accidental start-up during transportation
Durable, reversible belt clip convenient for temporary tool hanging
eXtreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
CAPACITY
Machine screw: M4 – M8 (5/32 – 5/16″)
Standard bolt: M5 – M16 (3/16 – 5/8″)
High strength bolt: M5 – M14 (3/16 – 9/16″)
Coarse thread (in length): 22 – 125 mm (7/8 – 4-7/8″)
Steel: 22 mm (7/8″)
Wood (Auger bit): 24 mm (15/16″)
HOLE SAW DIAMETER
38 mm (1-1/2″)
HEX SHANK
6.35 mm (1/4″)
SHANK/DRIVE
Hex Shank 6.35 mm (1/4″)
NO LOAD SPEED (RPM)
Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 – 3,700 / 0 – 3,200 / 0 – 2,100 / 0 – 1,100 / 0 – 1,800 / 0 – 2,700 / 0 – 3,700 / 0 – 3,700 / 0 – 2,900 / 0 – 3,700
IMPACTS PER MINUTE (IPM)
Max / Hard / Med. / Soft / Wood / Bolt (1) / Bolt (2) / Bolt (3) / T (1) / T (2) mode: 0 – 4,600 / 0 – 3,600 / 0 – 2,600 / 0 – 1,400 / 0 – 4,600 / N/A / 0 – 4,600 / 0 – 4,600 / N/A / 0 – 2,600
FASTENING TORQUE
Hard / Med. / Soft: 170 / 50 / 20 N·m (1,510 / 440 / 180 in.lbs.)
MAX FASTENING TORQUE
220 N·m (1,950 in.lbs.)
MAX OUTPUT
500 W
VIBRATION LEVEL
Impact tightening of fasteners of the maximum capacity of the tool: 12.9 m/s²
VIBRATION K FACTOR
1.5 m/s²
SOUND PRESSURE LEVEL
94 dB(A)
SOUND POWER LEVEL
105 dB(A)
NOISE K FACTOR
3 dB(A)
DIMENSIONS (L X W X H)
w/o Battery: 119 x 86 x 197 mm (4-11/16 x 3-3/8 x 7-3/4″)
w/ BL4020 / BL4025: 119 x 86 x 247 mm (4-11/16 x 3-3/8 x 9-3/4″)
w/ BL4040: 119 x 86 x 252 mm (4-11/16 x 3-3/8 x 9-7/8″)
w/ BL4050F: 119 x 86 x 278 mm (4-11/16 x 3-3/8 x 11″)
w/ BL4080F: 119 x 86 x 297 mm (4-11/16 x 3-3/8 x 11-3/4″)
NET WEIGHT
1.7 – 2.9 kg (3.7 – 6.4 lbs.)
