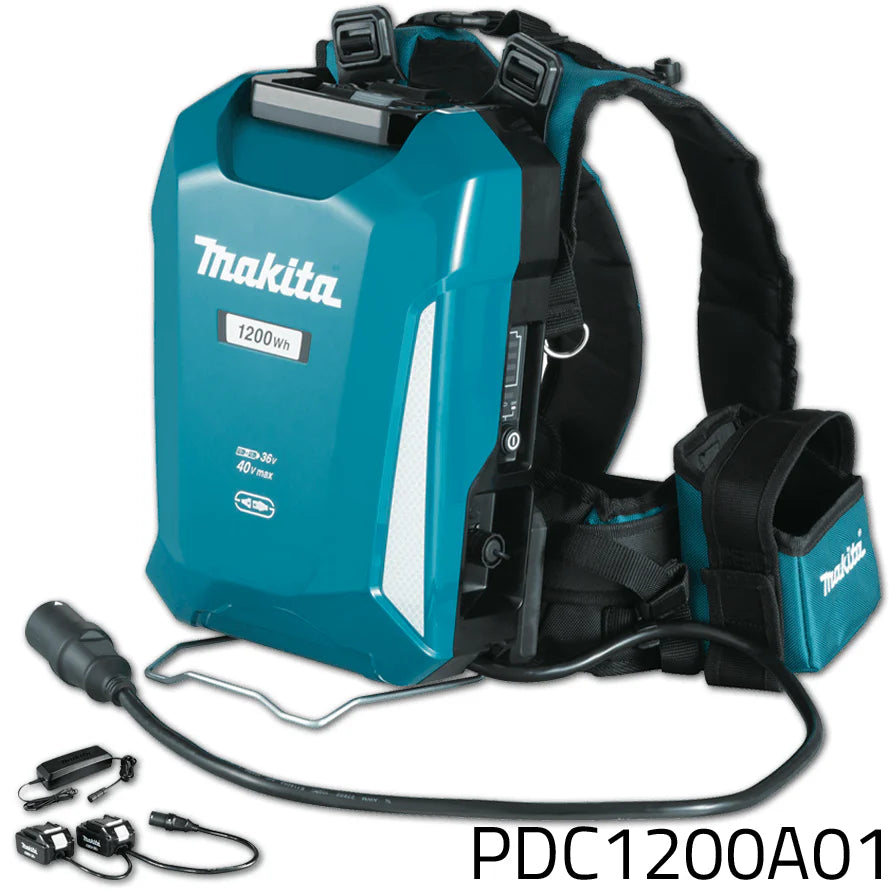

Makita PDC1200A01 Backpack Battery Power Pack 36V/40V LXT/XGT

PDC1200A01 – Portable Power Pack 36V/40Vmax LXT®/XGT™ Li-Ion
1,200 Wh high capacity
Our first over 1,000 Wh energy capacity battery
Enables a DUB362 to operate over 1 hour at the highest speed (at dial 6)
Equipped with built-in battery cells
Compatible with 18Vx2 LXT, 40Vmax XGT, 36V direct power connection
Quickly removable harness allows for use as a stationary power pack
Height-adjustable waist belt for personal fit and comfort
Main power switch with 8-hour auto-off function
4-LED fuel gauge indicates the battery status by four green LEDs
Wet Guard/ IPX4 compatible when used with the compatible tool
Intermediate connector between power tool and PDC1200 is automatically disconnected, if the cord from power tool is loaded with a certain weight or over
Stand enables the user to stand PDC1200 upright on an appropriate workbench and to slip it on user’s back easily, regardless of the position of the waist belt
Reflectors keep operator visible from a distance even in the dark
Charger DC4001 specially designed for PDC1200
6 hours to full charge with the charger DC4001 specially designed for PDC1200
Category 1 (Compatible*1 and recommended in the instruction manual): Chain saw*2, Blower*3, Grass trimmer*4, String trimmer*4, Multi function power head*4, Hedge trimmer, Pole saw, Angle grinder, Rotary hammer (as of June, 2020). *1 The model in this category is compatible with 18Vx2 LXT, 40Vmax XGT or 36V direct power connection platforms. *2 Excluding top-handle type: DUC252, DUC302, DUC352, DUC256, DUC306, DUC356, DUC406, DUC256C. *3 DUB362 automatically stops due to the battery protection function when running continuously at the highest speed (at dial 6) under high temperature environment (40°C or higher). *4 The nylon cord diameter should be ø2.0mm or less and the cutting width should be 350mm or less when the following models are used with PDC1200: DUR364L, DUR365U, DUR366L, DUR368A, DUR368L, DUX60.
Category 2 (Compatible*1 but not recommended in the instruction manual): Products not belonging to neither Category 1 nor 3 (as of June, 2020). *1 The model in this category is compatible with 18Vx2 LXT, 40Vmax XGT or 36V direct power connection platforms
Category 3 (Not compatible): Backpack type product (Vacuum cleaner / Pruning shears) / Products, to which the tool adapter cannot be connected due to the stopper rib (DHR280 / DHR281 / DHR282 / DHR283 / DHS710 / DHS711*5) / Battery adapter separate type ( BAP18 / BAP18C / BAP182 / BCV01 / PDC01) / Due to other factors (Lawn mower / DHW080) (as of June, 2020). *5 Circular saw belongs to Category 2. Therefore, in the instruction manuals of Circular saw and PDC1200, it is not described that it is not compatible with PDC1200
Retractable handle. UN Transportation Classification: Class 9-1A Hazardous goods (due to over 100 Wh battery)
Specifications:
Capacity
33.5 Ah
Energy Capacity
1,206 Wh
Number of Cells
100
Charging Time (hours)
6
Power Supply Cord
Battery Side: 1.1 m (3.6 ft)
Adapter Side: 0.6 m (2.0 ft)
Dimensions (L x W x H)
w/o Harness: 369 x 261 x 139 mm (14-1/2 x 10-1/4 x 5-1/2″)
w/ Harness: 428 x 261 x 164 mm (16-7/8 x 10-1/4 x 6-1/2″)
Net weight
8.8 kg (19.4 lbs.)
Inclusions:Harness, Adapter for 36V (18V x2) (191J51-5) , Charger (DC4001)
