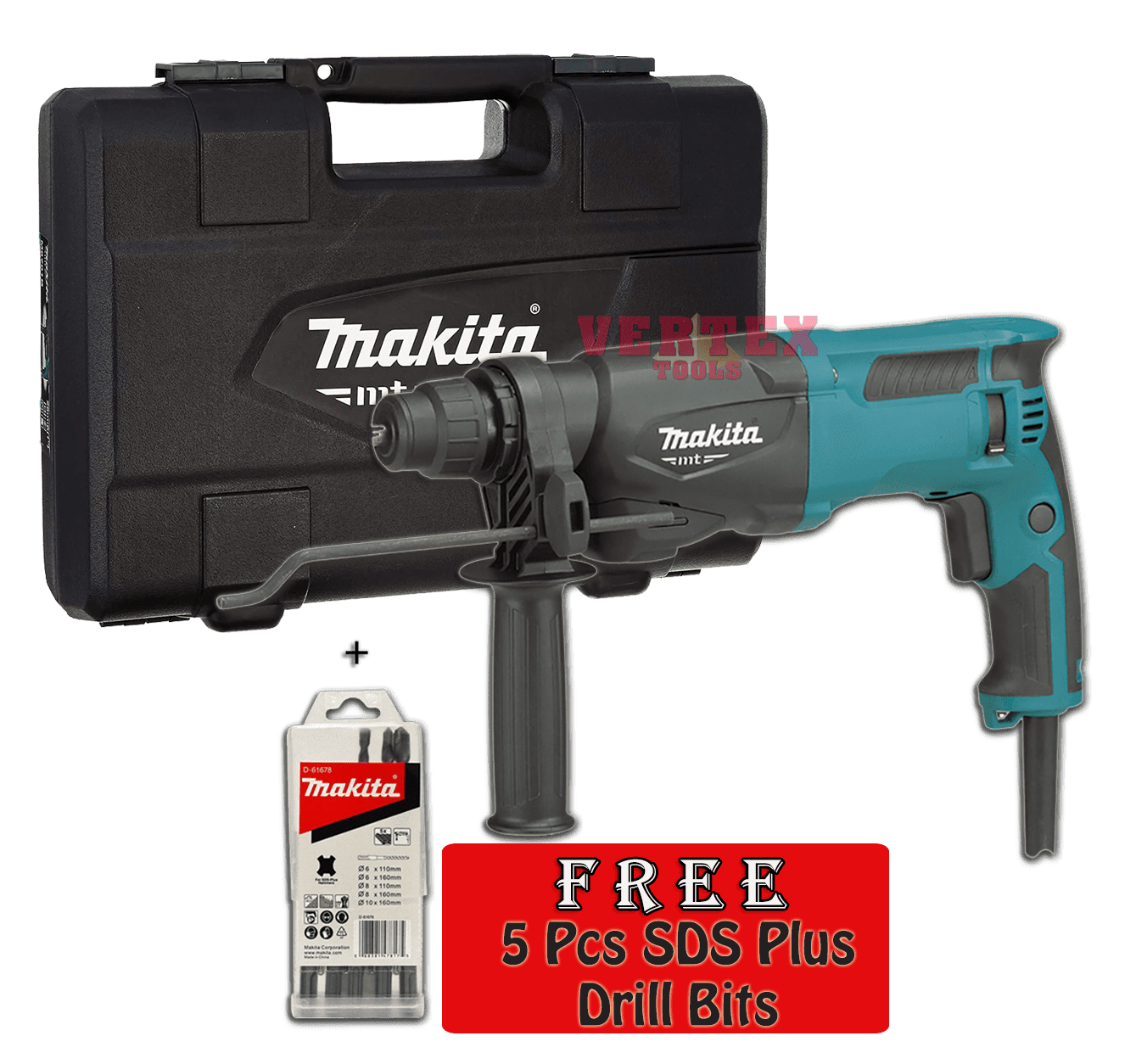

Makita M8700B 22mm Rotary Hammer – SDS PLUS

FEATURES:
High performance and durability at less expense
Re-located operating mode lever for increased protection and durability
Improved bit guide for increased bit stability during drilling applications
Easy-to-grip handle gives maximum power thrust and provides a sure and comfortable grip in any operation; overhead application, drilling with palm-up or palm-down grip
Soft grip provides more comfort and control
Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
Forward/reverse lever – position of the switch allows brushes to be positioned so that the drill maintains same speed and torque in forward and reverse
2-mode operation for “Rotation Only” or “Hammering with Rotation”
Variable speed trigger allows operator to adjust speed based on materials or application
One-touch sliding chuck for easy bit installation and removal
Depth gauge for increased drilling consistency
Recessed lock-on button for continuous use
Double insulated
SPECIFICATIONS:
Continuous Rating Input
710W
Capacity
Concrete: 22 mm (7/8″)
Steel: 13 mm (1/2″)
Wood: 32 mm (1-1/4″)
Core Bit: 54 mm (2-1/8″)
Diamond Core Bit (Dry Type): 65 mm (2-9/16″)
Chuck Capacity
1.5 – 13 mm (1/16 – 1/2″)
Shank Type
Hammer: SDS-PLUS Shank
Blows Per Minute (BPM)
0 – 4,350
No Load Speed (RPM)
0 – 1,100
Sound Pressure Level
90 dB(A)
Sound Power Level
101 dB(A)
Noise K Factor
3 dB(A)
Vibration Level
Hammer Drilling into Concrete:15.5 m/s²
Drilling into Metal:3 m/s²
Vibration K Factor
Hammer Drilling into Concrete:1.5 m/s²
Drilling into Metal:1.5 m/s²
Dimensions (L x W x H)
362 x 71 x 194 mm (14-1/4 x 2-13/16 x 7-5/8″)
Net weight
2.5 – 2.9 kg (5.6 – 6.4 lbs.)
Power supply cord
4.0 m (13.1 ft)

With 5 Pcs SDS Plus Drill Bits (6x110mm, 6x160mm, 8x110mm, 8x160mm, 10x160mm)
