Bare Tool – Battery and Charger not included
Features:
High power delivered by 40Vmax BL motor enables to cut as fast as if you were using a corded slide compound miter saw
Vacuum cleaner activation switch for increased comfort
LED light with ink line aligning funciton
Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
Rail-forward design enables to be placed against a wall for maximizing work space
Large turn base supports workpiece securely for increased stability
Integrated guide fences for increased rigidity and high cutting accuracy
Increased dust extraction rate for a cleaner work environment
Single sliding system enables smooth operation to produce superior cuts
Front knob for easy bevel angle adjustment
Increased sliding durability of safety cover
Slide lock for locking the sliding movement of the carriage
Holders are provided on both sides of the tool to hold long workpieces horizontally
Largest crown molding cutting capacity in its class
Exclusive linear ball bearings engineered to deliver “dead-on” accurate cuts
Increased capacity for up to 203 mm (8″) crown molding (vertically nested), 171 mm (6-3/4″) baseboard (vertical), and 382 mm crosscuts at 90°
Innovative direct drive gearbox and guard system is engineered for increased vertical cutting capacity
Miters 0°-60° left and right, with positive stops at 0°, 15°, 22.5°, 31.6°, 45° and 60° (left and right)
Compact and lightweight for easy jobsite portability.Powerful direct drive motor requires less maintenance and delivers 3,600 RPM.Exclusive 140 mm (5-1/2″) tall dual sliding fence system features upper and lower fence adjustments for more precise miter and bevel cuts.Ergonomic rubberized horizontal D-handle design for better fit and added comfort. Soft start feature for smooth start-ups. See-through blade guard system for greater visibility of blade and line of cut. Easy one-step blade changes for increased efficiency. Rubberized feet help tool remain stationary. Oversized trigger switch for better fit, added comfort and easier operation. Lock-off (2 stage) safety switch for increased operator safety. Electric brake for maximum productivity.Incorporates Deep eXact cutting Technology (DXT) achieved by our consistent pursuit of cutting larger size workpiece but with higher accuracy. On-tool hex wrench for fast and easy blade changes and keeping it from lost.Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
WHEEL DIAMETER
305 mm (12″)
BLADE DIAMETER
305 mm (12″)
HOLE DIAMETER
25.4 mm (1″)
MITER ANGLE
60° L 60° R
BEVEL ANGLE
48° L 48° R
MAX CUTTING CAPACITY
0° Miter: 107 x 363 mm (4-1/4 x 14-1/4″)
45° Miter, L/R: 107 x 255 mm (4-1/4 x 10″)
NO LOAD SPEED (RPM)
3600
MAX OUTPUT
1,500 W
SOUND PRESSURE LEVEL
91 dB(A)
SOUND POWER LEVEL
100 dB(A)
NOISE K FACTOR
3 dB(A)
DIMENSIONS (L X W X H)
898 x 690 x 725 mm (35-1/4 x 27-1/4 x 28-1/2″)
NET WEIGHT
30.5 – 31.1 kg (67.2 – 68.6 lbs.)
Cordless Power Tools

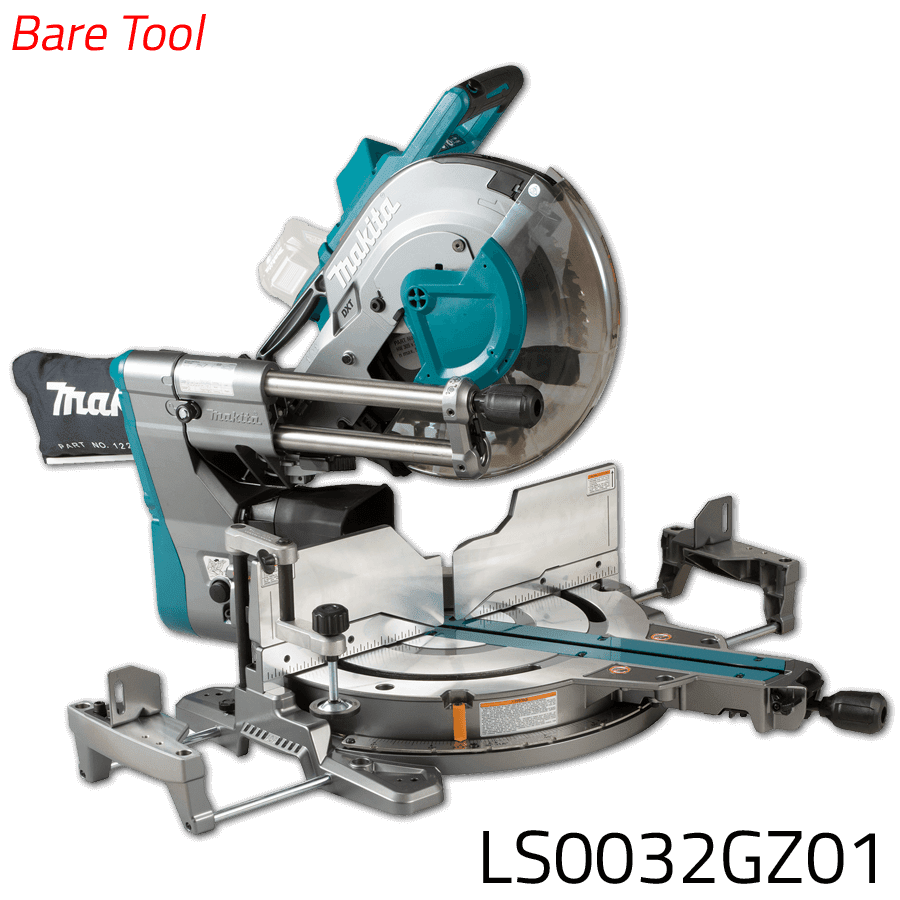

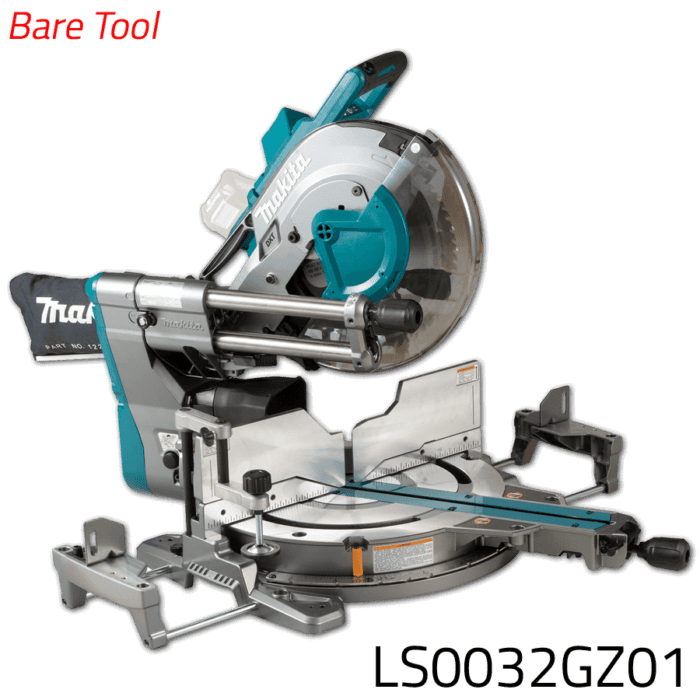

Makita LS003GZ01 40V Cordless Compound Miter Saw (XGT Series) [Bare Tool]
$61,900.00
