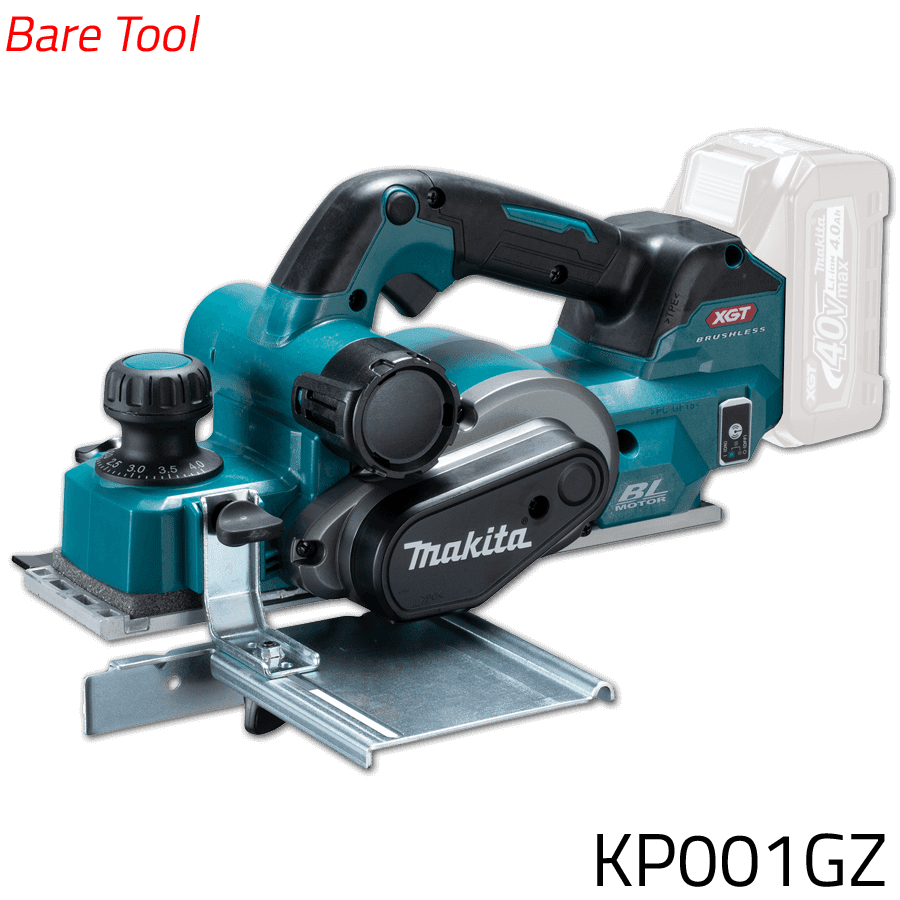

Bare Tool – Battery and Charger not included
Features:
Our 40Vmax XGT platform and increased rotation speed of BL motor provide max cutting depth of 4.0mm similar to corded models in the same class
Smooth planing similar or better than corded models in the same class for both rough planing and thin planing
Increased cutting depth and shiplapping depth
Auto-start Wireless System (AWS) connects to vacuum cleaner with Bluetooth
Extreme Protection Technology (XPT) is engineered for improved dust and water resistance for operation in harsh conditions
2-blade cutter head with double edge carbide blades for added performance and smooth finish
Depth of cut may be adjusted by simply turning the knob on the front of the tool so that the pointer points the desired depth of cut
Chip ejection can be directed to either side of the tool for convenience
Spring-loaded stand elevates the base to protect the blades and workpiece
Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job
Front base features 3 chamfering groove options
Can be used with both standard planer blades and double-edged mini blades
Easy blade setting system for fast blade installation
Electric brake for maximum productivity
Soft start for smooth start-ups
Guide rule for accurate and maximum use of planing width
On-tool storage for hex wrench
Battery protection circuit protects against overloading, over-discharging and over-heating
Specifications:
BLADE SIZE
82 mm (3-1/4″)
PLANING WIDTH
82 mm (3-1/4″)
PLANING DEPTH
4 mm (5/32″)
SHIPLAPPING
25 mm (1″)
NUMBER OF CHAMFERING GROOVES
3
NUMBER OF BLADES
2
NO LOAD SPEED (RPM)
15,000
MAX OUTPUT
1,100 W
LOCK-OFF FUNCTION
YES
ANTI-RESTART FUNCTION
YES
SOFT GRIP
YES
CHIP EJECTION
Both sides
FOOT ON BASE PLATE
YES
VIBRATION LEVEL
Planing softwood: 4.3 m/s²
VIBRATION K FACTOR
Planing softwood: 1.5 m/s²
SOUND PRESSURE LEVEL
87 dB(A)
SOUND POWER LEVEL
98 dB(A)
NOISE K FACTOR
3 dB(A)
DIMENSIONS (L X W X H)
w/o Battery: 330 x 156 x 166 mm (13 x 6-1/8 x 6-1/2″)
w/ BL4020 / BL4025: 379 x 156 x 166 mm (14-7/8 x 6-1/8 x 6-1/2″)
w/ BL4040: 385 x 156 x 166 mm (15-1/8 x 6-1/8 x 6-1/2″)
w/ BL4050F: 405 x 156 x 175 mm (16 x 6-1/8 x 6-7/8″)
w/ BL4080F: 424 x 156 x 175 mm (16-3/4 x 6-1/8 x 6-7/8″)
NET WEIGHT
3.7 – 4.9 kg (8.2 – 10.8 lbs.)
