FEATURES:
Variable speed control dial enables user to match the speed to the application for greater versatility
L.E.D. power light indicates switch failure or cord damage
Rubberized ergonomic soft grip provides more comfort
Soft start suppresses start-up reaction for more precision and better accuracy
Extended life brushes are longer for more work between service intervals and less downtime
Automatic brush cut-off protects commutator from damage for longer tool life
Easy-to-operate slide switch increases productivity and allows for continuous use
Side handle swivels 360° for greater control
Double insulated

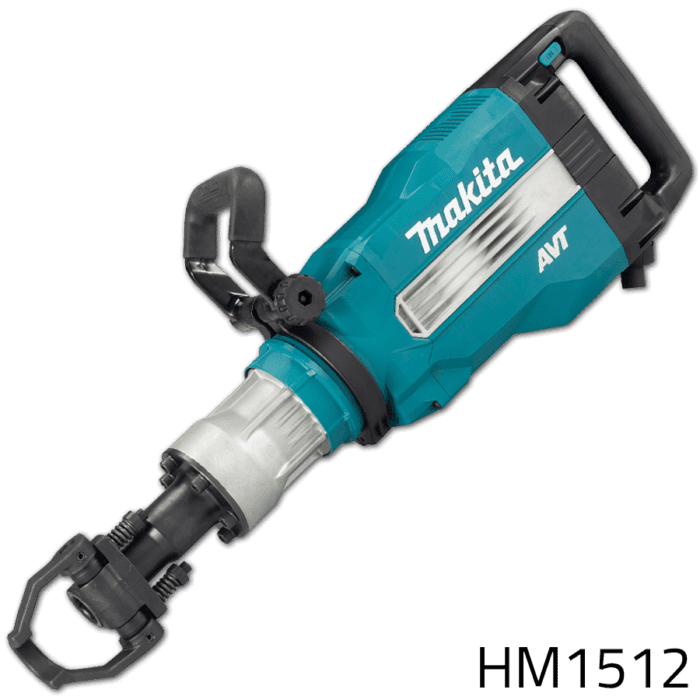

48.5 J AVT SOFT NO LOAD Electric Breaker, 28.6 mm Hex Shank
Both drastically increased power and low vibration are achieved with minimum increase in tool size and weight
Powerful 1,850 W motor delivers 48.5 J (EPTA-Procedure 05/2009) of impact energy to handle the most demanding applications
Thanks to completely redesigned hammering mechanism and increased motor power as compared with HM1317C series, higher power is achieved with minimum increase in tool size and weight
Despite the drastically increased power; Anti-vibration housing, Active dynamic vibration absorber and Soft no-load keep the vibration lower than that of HM1317C series, allowing for efficient chipping for a long period
L.E.D. service light notifies the user approximately 8 hours before the brushes need to be replaced
SPECIFICATIONS:
Blows Per Minute (BPM)
1300
Dimensions (L x W x H)
809 x 130 x 266 mm (31-3/4 x 5-1/8 x 10-1/2″)
Impact Energy
EPTA-Procedure 05/2009: 48.5 J
Noise K Factor
1.76 dB(A)
Sound Power Level
104 dB(A)
Sound Pressure Level
84 dB(A)
Vibration K Factor
Chiselling: 1.5 m/s²
Vibration Level
Chiselling: 6.5 m/s²
Net weight
20.4 kg (45.0 lbs.)
Power supply cord
4.0 m (13.1 ft)
