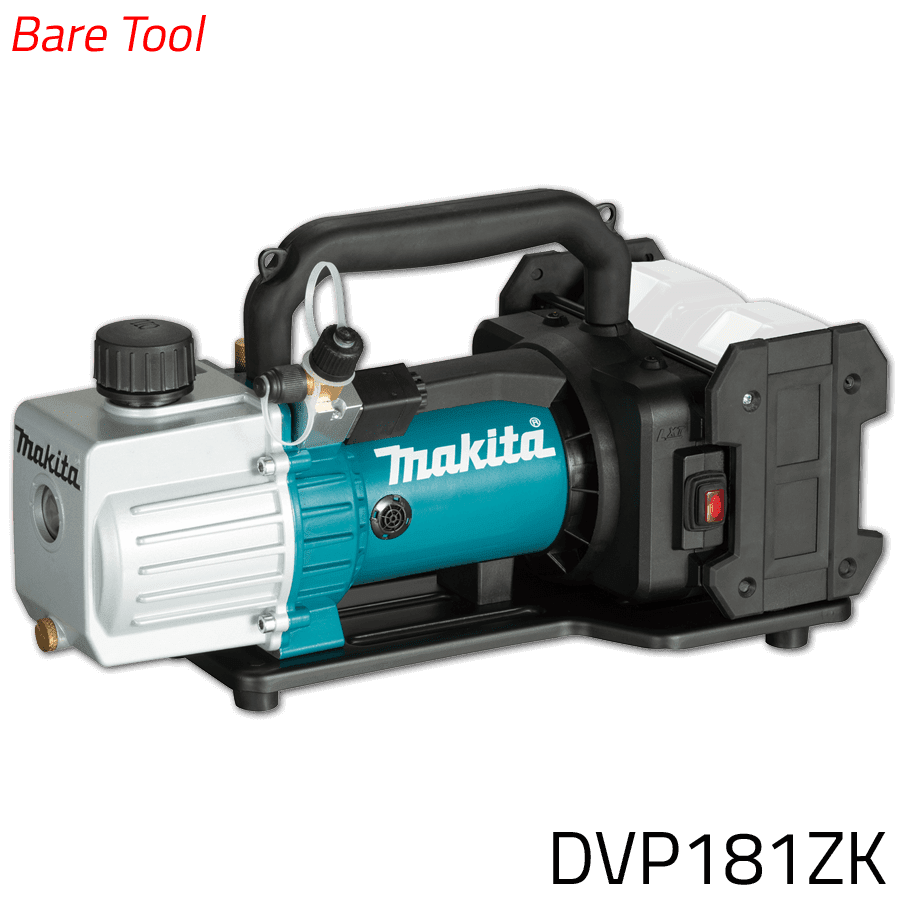

Bare Tool – Battery and Charger not yet included
Features:
4CFM class cordless vacuum pump for air purge during installation of air conditioning systems
Designed to purge large air conditioning systems which DVP180 cannot purge
High power for 20 HP professional-use refrigeration case and large air conditioner
Long run time of 60 minutes with a fully charged BL1860B x2, enough to complete most purging jobs
Compression type: Oil-sealed rotary vane type, Dual-stage compression
Check valve: Electromagnetic valve
Cordless vacuum pump for air purge during installation of room air conditioner
Removes all air from refrigerant tubing to create a vacuum environment before the tubing is charged with refrigerant gas
Easy to carry with a compact and lightweight body
Built-in metal mesh filter minimizes vacuum pump oil from scattering from exhaust port
Drain port with valve allows for easy change of vacuum oil pump
Valve minimizes securely oil back flow
Convenient in places where AC outlet is not available
Battery guards minimize the possibility of battery damage even if the machine falls down
Optional shoulder belt can be attached
Specifications:
FLOW RATE
113 L/min
MOTOR SPEED
3,200 minˉ¹
OIL TANK CAPACITY
300 mL
INLET PORT
5/16 / 3/8″
DIMENSIONS (L X W X H)
383 x 193 x 210 mm (15-1/8 x 7-5/8 x 8-1/4″)
NET WEIGHT
8.1 – 8.2 kg (17.9 – 18.1 lbs.)
