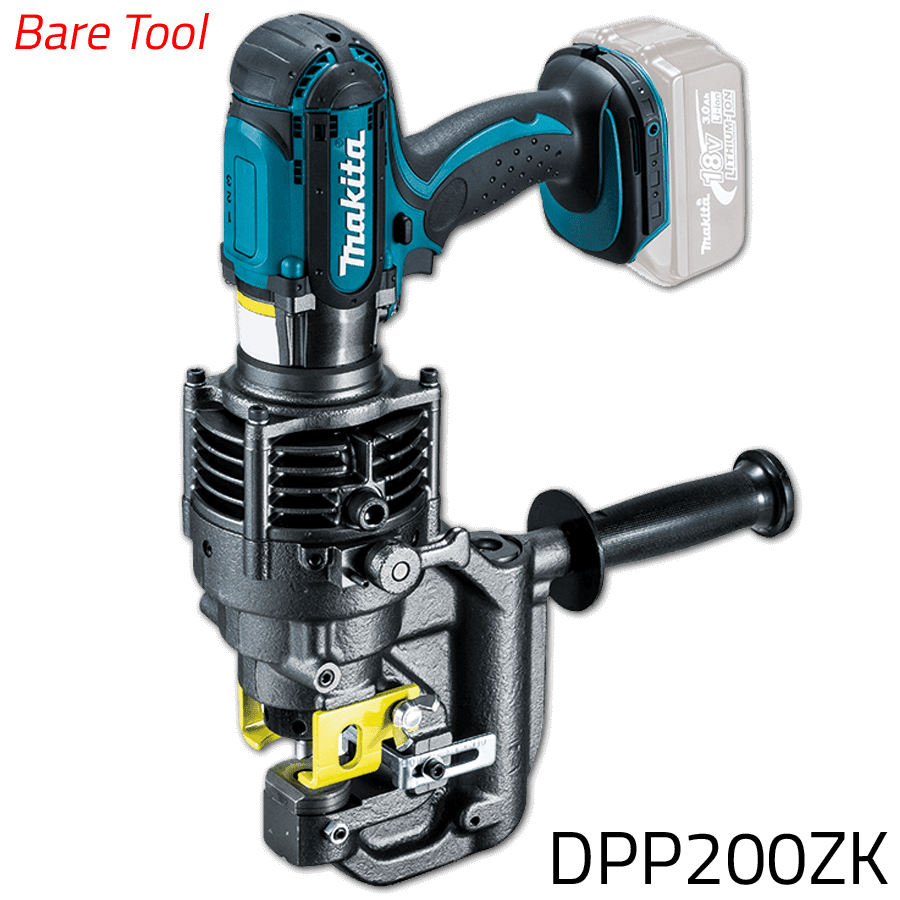

Punches up to 20 mm Holes through Steel Plate up to 8 mm thick
Automatic punch return: After a punching cycle is completed, hydraulic pressure automatically pulls off the punch from workpiece and returns it to the initial position to enable efficient continuous hole punching
Type of hole: Round hole / long hole
Work volume on a full battery charge: 110 holes (approx.)
Bare Tool – Battery and charger not included
SPECIFICATIONS:
Capacity
Steel: 20 mm (13/16″)
Stainless Steel: 20 mm (13/16″)
Max Throat Depth
40 mm (1-9/16″)
Dimensions (L x W x H)
w/ BL1830B / BL1840B / BL1850B / BL1860B: 417x127x315 mm (16-3/8″x5″x12-3/8″)
Net weight
10.5 kg (23.2 lbs.)
