FEATURES:
BL motor delivers 3.2 m/s (630 ft./min.) blade speed for faster cutting
BL motor eliminates carbon brushes, enabling the BL motor to run cooler and more efficiently for longer life
BL motor is electronically controlled to optimize battery energy use for longer run time per charge
BL motor efficiently uses energy to match torque and RPM to the changing demands of the application
Stable cutting with highly rigid aluminum structure; Rigid aluminum die-cast frame and gear housing minimizes the blade from sliding off the wheel; The rigidity also allows for increasing the tension on the blade to minimize the blade from slipping on the wheel
66 mm cutting capacity; Large cutting capacity allows for single-pass cutting of 65 mm x 45 mm light gauge steel stud
Constant speed control minimizes the reduction in blade speed to provide stable cutting
Variable speed control by dial; An optimum cutting speed can be selected to suit application
Catch bracket protects the tool body from damage by hitting against workpiece
Electric brake for maximum productivity and increased operator safety
Aluminum diecast frame and gear housing for increased durability
Drastically reduced size has been achieved by relocating the handle for easier operation even in tight spaces
Easy blade track adjustment simply by turning the screw
Redesigned structure of wheel cover and frame (lowered aluminum portion than wheel) for easy installation/removal of blade when the wheel cover is open
Twin LED job light with pre-glow and afterglow functions illuminates the work area
Adjustable stopper plate convenient to cut pipes near walls, floors and ceilings
Tool hook secures the tool when not in use
Easy-to-grip handle with elastomer surface for anti-slip
Wheel cover encloses the blade outside the cutting area making the saw suitable for one-handed operation. Lock-off button minimizes accidental startup. On-tool storage for hex wrench. Battery protection circuit protects against overloading, over-discharging and over-heating.
Bare Tool – Battery and Charger not included
SPECIFICATIONS:
Capacity
Round: 66 mm (2-5/8″)
Square: 66 x 66 mm (2-5/8 x 2-5/8″)
Blade Speed
0 – 3.2 m/s (0 – 630 ft/min.)
Blade Size
Length: 835 mm (32-7/8″)
Width: 13 mm (1/2″)
Thickness: 0.5 mm (0.02″)
Max Output
490 W
Vibration Level
Cutting Metal: 2.5 m/s² or less
Vibration K Factor
Cutting Metal: 1.5 m/s²
Sound Pressure Level
80 dB(A)
Noise K Factor
3 dB(A)
Dimensions (L x W x H)
392 x 174 x 242 mm (15-1/2 x 6-7/8 x 9-1/2″)
Net weight
3.6 – 3.9 kg (7.9 – 8.6 lbs.)
Cordless Power Tools

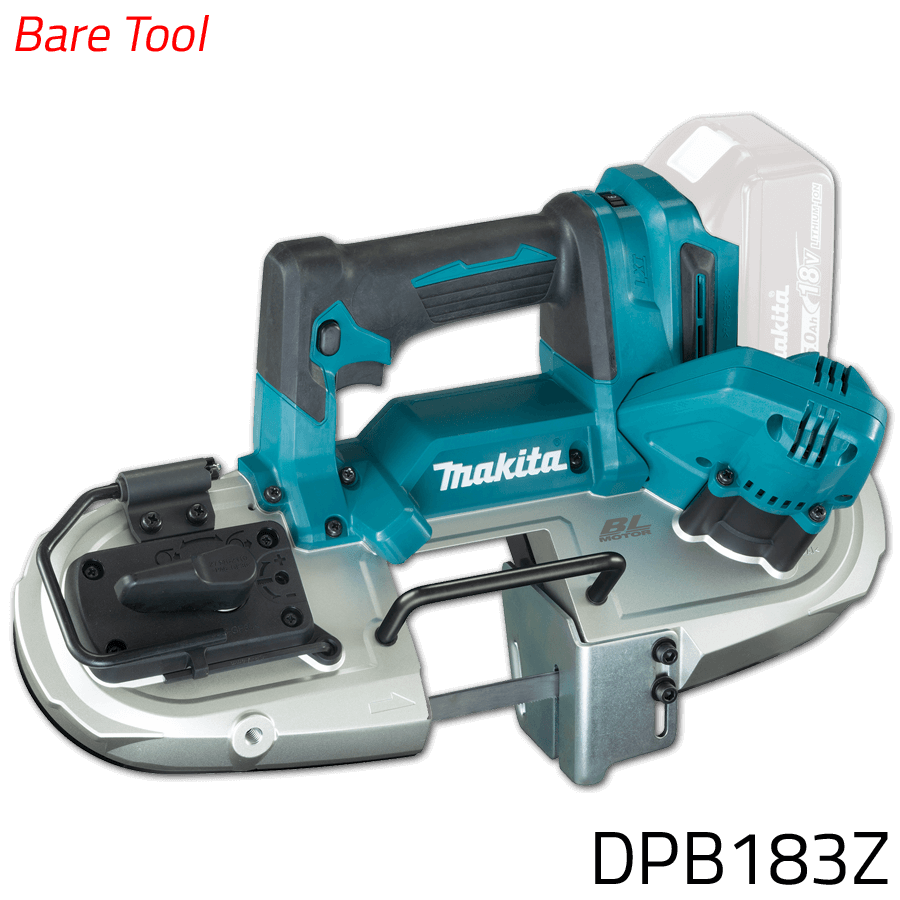

Makita DPB183Z 18V Cordless Brushless Portable Band Saw (LXT-Series) [Bare Tool]
$57,470.00
