Product Overview

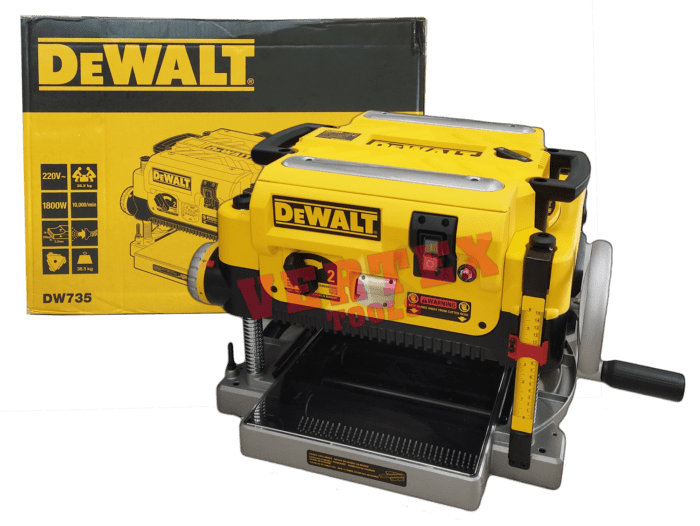

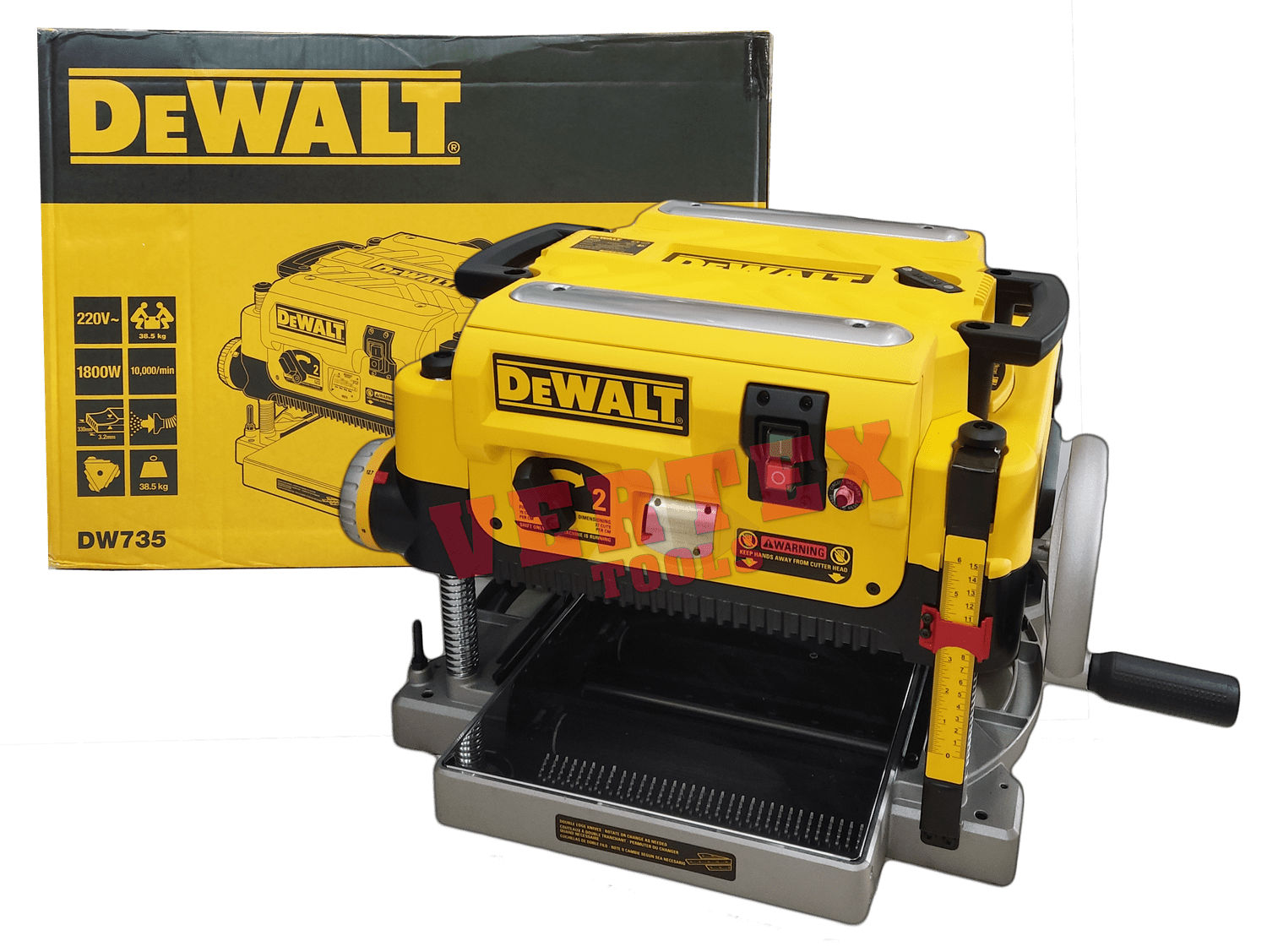

The DW735 13 in. Three Knife, Two Speed Thickness Planer is powered by a 15 Amp motor to easily managing large cuts in wider materials. Three-knife cutter head with 10,000 rpm and feed speed options for 96 or 179 CPI provide optimal performance.
Features
Fan-assisted chip ejection vacuums chip off of the cutter head and exhausts them out of the machine
19-3/4 in. cast aluminum base is 2X more rigid than a standard 10 in. base and folding tables
Automatic carriage lock reduces the movement that causes snipe without the need for manual engagement by the user
Material removal gauge and extra large, thickness scale delivers accurate cuts with every pass
Extra large, turret depth stop allows user to return to most frequently used thicknesses with ease
Specifications
Power Input
1800W
No-load/rated Speed
10,000min-1
Feed Speed m/min (ft./min)
4.3 (14) or 8.0 (26)
Cutting height (Max)
152mm
Cutting Width (Max)
330mm
Max. Cutting Depth for Max. Board width of 152mm (6″)
3mm (1/8″)
