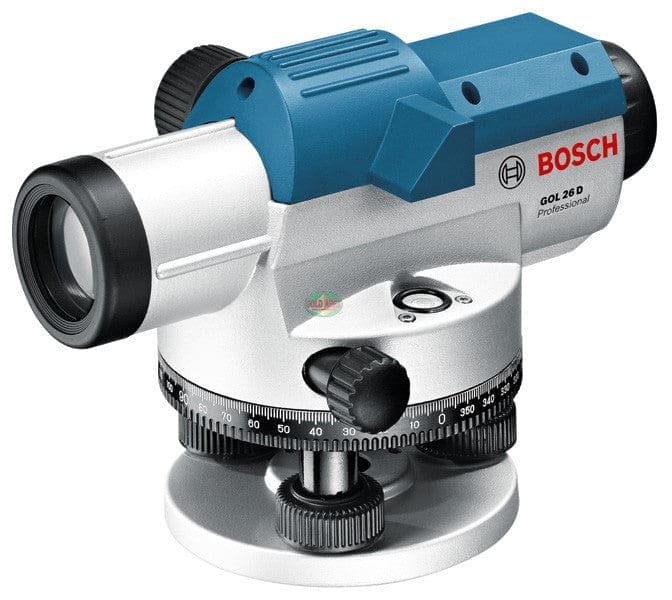

Optical LevelGOL 26 D
0 601 068 000 (Philippines)
Extremely robust – ideal for outdoor use
Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
Robust design with built-in target collimator and integrated circular vial
Compensator lock for safe transport
Target collimator for rough alignment
Penta prism makes it easy to read the circular vial
Large focusing knob for easy alignment
Fast aperture for excellent staff reading
High precision (1.6 mm/30 m) over long distances
Endless degree/angle setting using knobs on both sides with friction-braked rotation
Erect image
Technical data
Unit of measure
360 degrees
Magnification
26 x
Accuracy
1.6 mm at 30 m
Working range
up to 100 m
Angular accuracy
1°
Dust and splash protection
IP 54
Tripod thread
5/8″
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Length x width x height
215 x 135 x 145 mm
Weight, approx.
1.5 kg
Note: Tripod not yet included
1 Year Bosch Warranty
