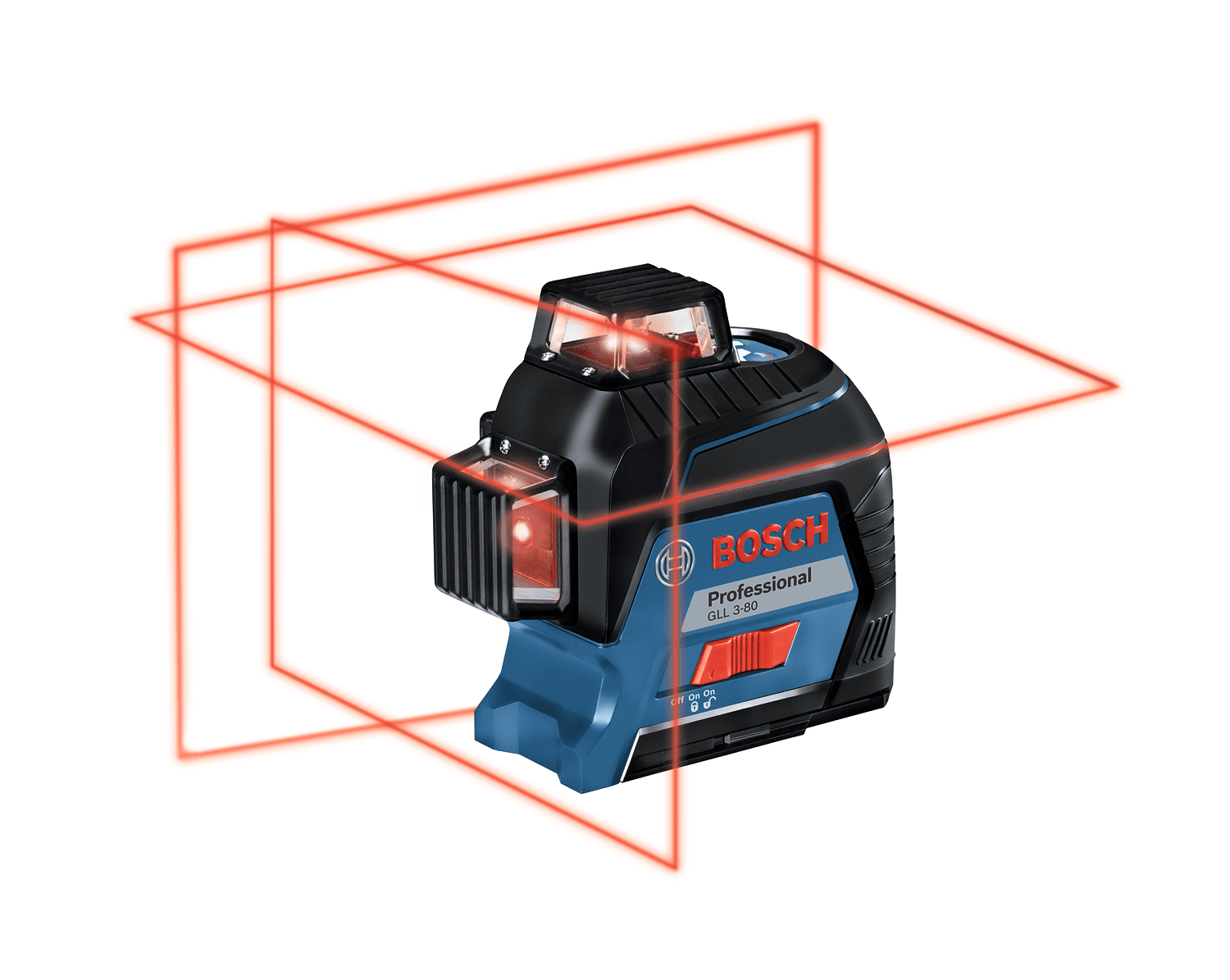

Line LaserGLL 3-80
0 601 063 S00
Visibility on a new level in 3 x 360°
High visibility due to high power diodes
High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room with only one tool
Easy to operate using intuitive user interface
Self-levelling (4° in 4 sec) and very precise (± 0.2 mm/m)
Working range of 80 m with the LR 6 or LR 7 Professional receiver (optional)
Compact, easy to handle and extremely robust (IP54)
Pendulum lock ensures safe transport
Technical data
Laser diode
Line: 630 – 650 nm, < 10mW
Operating temperature
-10 – 40 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range
30 m
Working range with receiver
120 m (Diameter)
Working range without receiver
30 m (Radius)
Accuracy
± 0.2 mm/m
Self-levelling range
± 4°
Levelling time
4.0 s
Dust and splash protection
IP 54
Power supply
4 x 1.5 V LR6 (AA)
Operating time (max.)
4 h in 3-line mode
Tripod thread
1/4", 5/8"
Weight, approx.
0.82 kg
Length x width x height
149 x 84 x 142 mm
Colour of laser line
red
Projection
3 x 360° line
Compatible laser receivers
LR 6 + 7
Tripod not yet included
