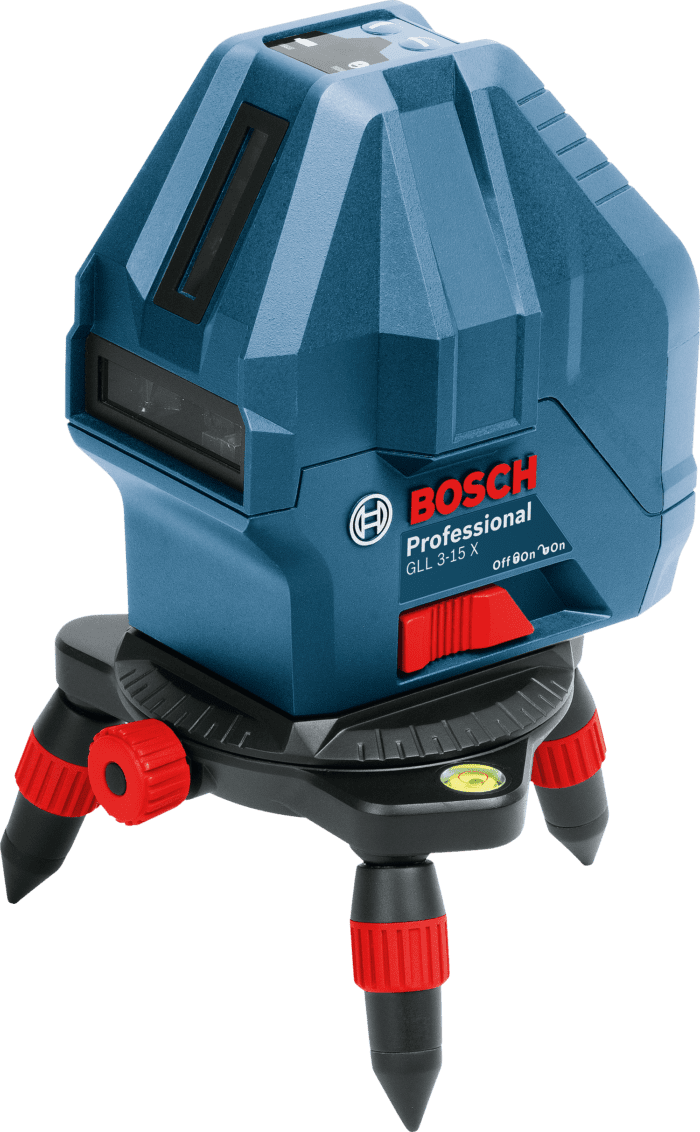

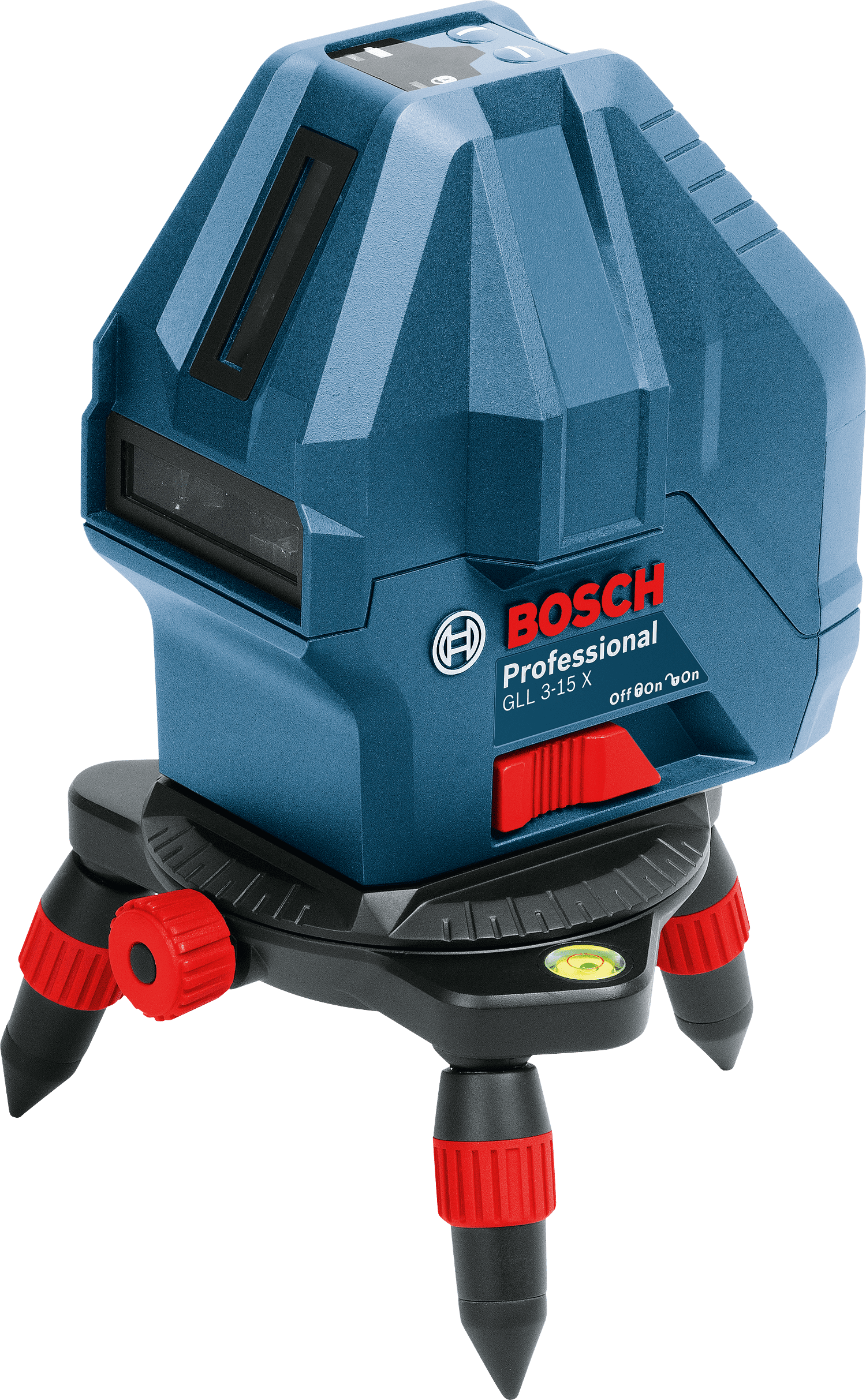

Bosch GLL 3-15 X Line Laser




For easy decorative interior fitting applications
Maximum precision thanks to the Bosch Pendulum Precision System
Projection of a vertical and a horizontal line
Detachable, 360° rotating platform with bubble vial and fine adjustment
Technical data

Laser diode
635 – 650 nm
Operating temperature
-10 – 45  °C
Storage temperature
-20 – 70  °C
Laser class
2
Working range
15  m
Accuracy
± 0.2 mm/m
Working range of laser points, max.
5 m (bottom)
Self-levelling range
± 3°
Levelling time
4.0  s
Dust and splash protection
IP 54
Power supply
4 x 1.5 V LR6 (AA)
Operating time (max.)
24 h
Tripod thread
5/8″
Weight, approx.
0.72  kg
Length x width x height
122 x 83 x 129  mm
Colour of laser line
red
Projection
3 lines + 1 plumb point
