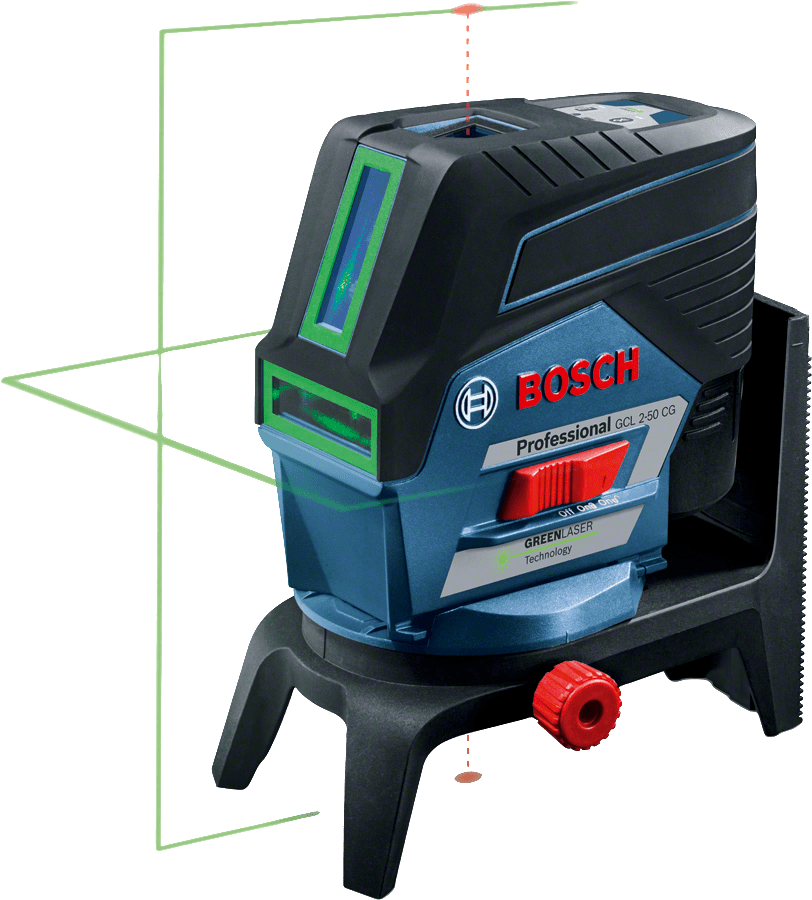

Combi LaserGCL 2-50 CG
0 601 066 H00
Supreme visibility connected with smart functions
Green horizontal and vertical lines for maximal visibility
Bluetooth® connection to smartphone for remote control and adjustment of the tool
Dual Power Source: Can be operated both with 12 V-LI-ion battery and with standard alkaline batteries
Horizontal and vertical laser lines and two centred plumb points with optimal visibility
Precise positioning of the laser lines around the plumb points – motorised positioning with RM 3 Professional (optional), using an app or remote control or manual positioning with RM 2 Professional
High visibility of the laser lines with a working range of 20 m (without receiver)
Working range of 50 m with the LR 7 Professional receiver (optional)
Pendulum lock ensures safe transport
Technical data
Laser diode
500 – 540 nm, < 10 mW 630 – 650 nm, < 1mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range
20 m
Working range with receiver
50 m
Accuracy
± 0.3 mm/m
Working range of laser points, max.
10 m (top) 10 m (bottom)
Self-levelling range
± 4°
Dust and splash protection
IP 54
Operating time (max.)
10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation 15 h (Li-Ion) and 12 h (4 x AA) in line operation 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Tripod thread
1/4"
Weight, approx.
0.6 kg
Length x width x height
136 x 55 x 122 mm
Colour of laser line
green
Projection
2 lines / 2 points
Plumb point accuracy
± 0.7 mm/m
Compatible laser receivers
LR 7
