Four times better visibility thanks to green laser lines
Green horizontal and vertical lines for maximal visibility
Multifunctional rotating mount for easy alignment of the laser lines around the plumb points
Red plumb points for precise transfer application
Pendulum lock ensures safe transport
Easy handling due to single-handed operation and intuitive user interface
Line and point mode freely selectable
Horizontal and vertical self-levelling up to ±4°
Technical Data
Laser diode
Line: 500 – 540 nm, < 10 mW Point: 630 – 650, < 1 mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range
15 m
Accuracy
± 0.3 mm/m
Working range of laser points, max.
10 m (top) 10 m (bottom)
Self-levelling range
± 4°
Levelling time
4.0 s
Dust and splash protection
IP 54
Power supply
3 x 1.5 V LR6 (AA)
Operating time (max.)
6 h in cross line and point mode 8 h in cross line mode 10 h in line and point mode 12 h in line mode 22 h in point mode
Tripod thread
1/4", 5/8"
Weight, approx.
0.49 kg
Length x width x height
132 x 81 x 163 mm
Colour of laser line
green
Projection
2 lines / 2 points
Plumb point accuracy
± 0.7 mm/m
Scope of delivery
Details for GCL 2-15 G Professional
Specification
Part number
0 601 066 J00
EAN code
3165140869553

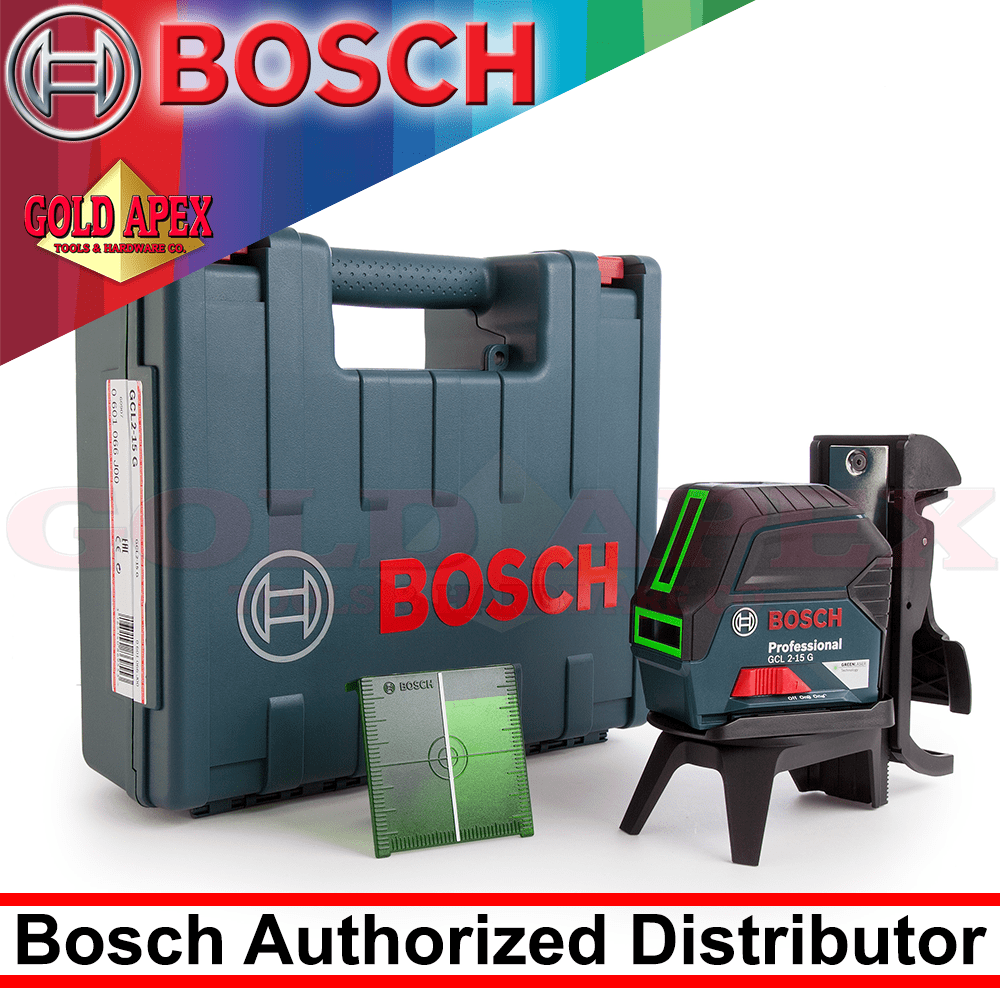

GCL 2-15 G Professional comes complete with:
Item
Included
Carrying Case
.
Laser target plate
RM 1 Professional
0 601 092 600
3 x battery 1.5 V LR6
AA
