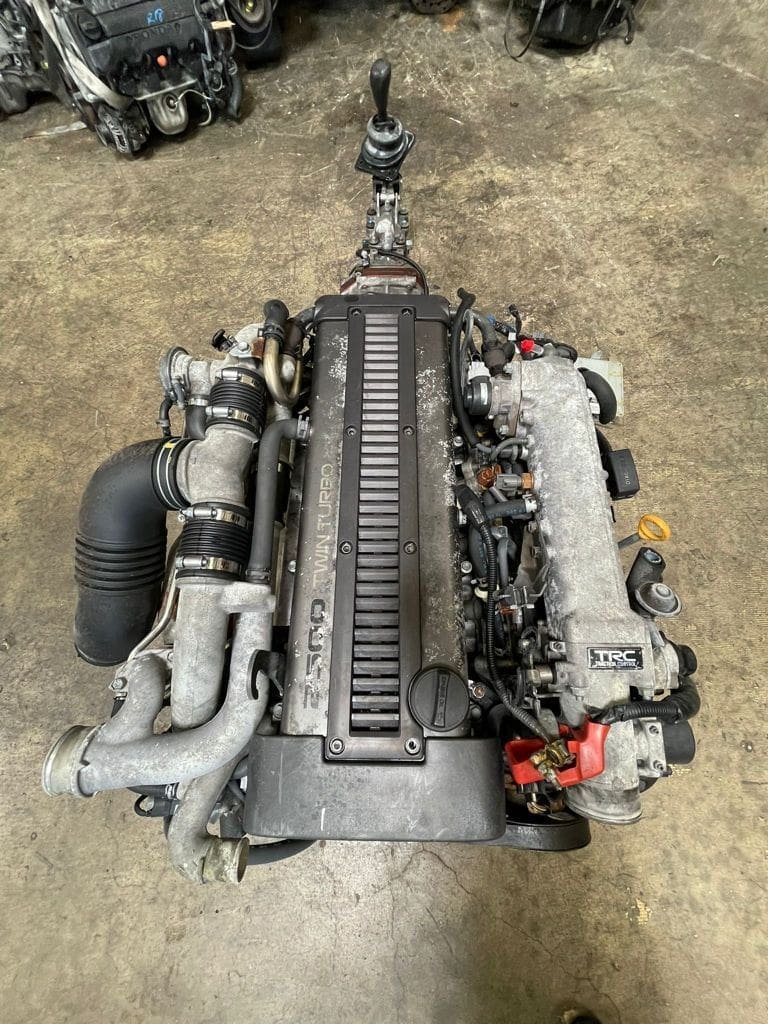

Complete Guide to the 1JZGTE Non-VVTi Twin Turbo 2.5L FRONT Sump Engine with R154 5-Speed Manual Transmission
The 1JZGTE Non-VVTi Twin Turbo 2.5L engine paired with the R154 5-speed manual transmission has earned a legendary status among automotive enthusiasts. This combination, originally produced by Toyota, offers exceptional performance, reliability, and versatility, making it a popular choice for swaps and custom builds.
Overview of the 1JZGTE Non-VVTi Engine
The 1JZGTE Non-VVTi is a member of Toyota’s JZ engine family, known for its robust construction and performance potential. It is a 2.5L inline-6 engine equipped with twin parallel CT12A turbochargers and an iron block for durability.
Key Features:
- Displacement: 2,491 cc
- Configuration: Inline-6
- Turbocharger System: Twin-turbo (CT12A turbos)
- Compression Ratio: 8.5:1
- Power Output: ~280 PS (276 HP) at 6,200 rpm
- Torque Output: 363 Nm (268 lb-ft) at 4,800 rpm
- Fuel System: Electronic fuel injection
- Engine Management: Factory ECU
Notable Advantages:
- Durable Iron Block: Provides the strength needed for high-performance applications.
- Twin Turbochargers: Deliver quick spool-up and a broad torque curve.
- High Modification Potential: Known to handle significant power increases with aftermarket upgrades.
R154 5-Speed Manual Transmission
The R154 transmission is a robust 5-speed manual gearbox commonly paired with the 1JZGTE engine. Its durability and smooth shifting make it a top choice for performance builds.
Key Features:
- Gear Ratios:
- 1st: 3.25
- 2nd: 1.95
- 3rd: 1.30
- 4th: 1.00
- 5th: 0.75 (overdrive)
- Reverse: 3.18
- Torque Capacity: Over 400 lb-ft in stock form
- Clutch Compatibility: Wide range of aftermarket options available
- Shifter Position: Adjustable for different applications
Benefits:
- Strength: Handles high torque levels, making it ideal for high-powered engines.
- Aftermarket Support: Extensive availability of replacement parts and performance upgrades.
- Compatibility: Works seamlessly with the 1JZGTE engine for a factory-like fit.
Front Sump Configuration
The front sump oil pan configuration of the 1JZGTE Non-VVTi engine is crucial for specific vehicle applications. This setup is often used in cars with front cross-members that necessitate a forward-positioned sump for clearance.
Common Applications:
- Toyota Chaser (JZX90, JZX100)
- Toyota Mark II
- Custom swaps (e.g., Mazda RX-7, Nissan S13/S14)
Performance Potential
The 1JZGTE Non-VVTi and R154 combination offers exceptional tuning potential. With bolt-on upgrades and ECU tuning, this setup can achieve significant power increases.
Typical Upgrades:
- Single Turbo Conversion: Replacing twin turbos with a single large turbo for higher horsepower.
- Fuel System Upgrades: High-flow injectors and fuel pumps.
- Standalone ECU: For precise tuning and added features.
- Exhaust System: High-flow exhaust for improved turbo efficiency.
- Intercooler: Larger intercoolers for better charge air cooling.
Power Capabilities:
- Stock internals: ~450-500 HP
- Built internals: 600+ HP with appropriate supporting mods
FAQs
1. What makes the 1JZGTE Non-VVTi engine unique?
The 1JZGTE Non-VVTi features twin turbos and a durable iron block. Unlike the VVTi version, it lacks variable valve timing, which some enthusiasts prefer for simplified tuning and reliability.
2. How does the R154 transmission compare to modern gearboxes?
While the R154 is not as refined as newer transmissions, it remains a favorite due to its strength and compatibility with the 1JZGTE. It is also easier to repair and modify compared to modern gearboxes.
3. What vehicles can accommodate the front sump configuration?
The front sump setup is ideal for vehicles with front cross-members positioned near the center of the engine bay. It is commonly used in Toyota sedans like the Chaser or Mark II.
4. Is the twin-turbo system reliable for high performance?
The stock CT12A turbos are reliable for moderate performance increases but are typically replaced with a single turbo for higher power builds due to their limitations at higher boost levels.
5. What is the cost of a 1JZGTE Non-VVTi and R154 combo?
Prices vary depending on availability, condition, and included accessories. As of now, the cost ranges from $4,000 to $7,000 for a complete setup.
6. Can I swap the 1JZGTE Non-VVTi and R154 into my car?
Yes! This engine and transmission combination is a popular swap choice. However, it requires custom mounts, wiring, and possibly driveshaft modifications, depending on the vehicle.
7. What are the downsides of this setup?
- Age of components: Many parts may need replacement.
- Limited availability: Harder to find compared to newer engines.
- Fuel economy: Not a strong point, especially after modifications.
8. How does the Non-VVTi compare to the VVTi version?
The Non-VVTi is simpler and preferred for high-boost applications. The VVTi version offers better low-end torque and efficiency, thanks to its variable valve timing.
9. What oil should I use for the 1JZGTE Non-VVTi?
A high-quality synthetic oil, such as 5W-40 or 10W-40, is recommended to ensure proper lubrication, especially in high-performance setups.
10. How long can the R154 last under high power?
With proper maintenance, the R154 can handle over 400 lb-ft of torque in stock form. Strengthened components can extend its lifespan even further in high-power builds.
Conclusion
The 1JZGTE Non-VVTi Twin Turbo 2.5L engine with the R154 5-speed manual transmission remains a top choice for enthusiasts seeking reliability and performance. Its versatility, aftermarket support, and proven capabilities make it an excellent option for engine swaps and custom builds. Whether you’re restoring a classic Toyota or building a high-horsepower machine, this legendary combo is sure to impress.
