JDM Honda Civic TYPE R CTR EK9 B16B 1.6L DOHC VTEC Engine: An Iconic Piece of Automotive Engineering

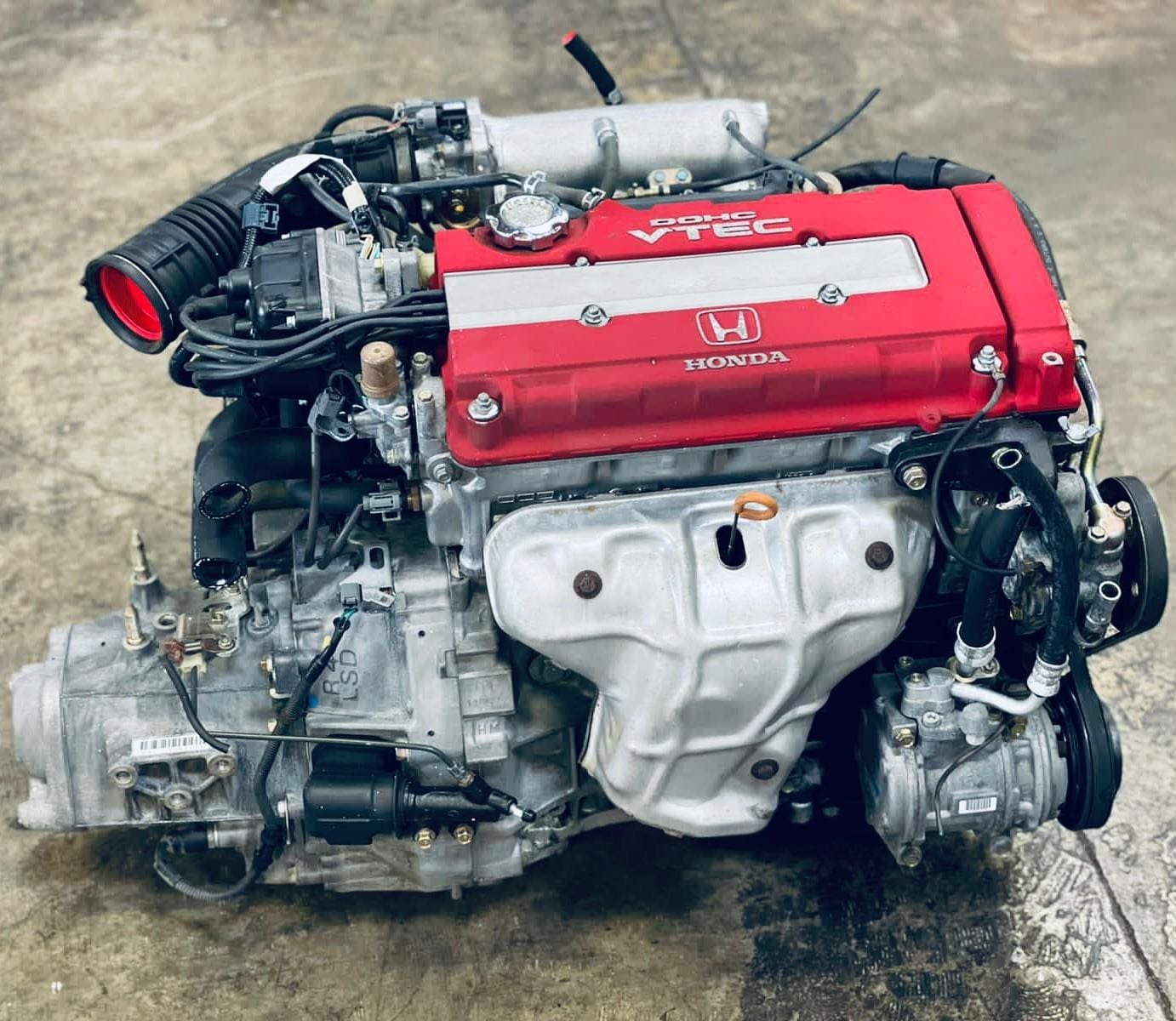

JDM Honda Civic TYPE R CTR EK9 B16B 1.6L DOHC VTEC V-TEC ENGINE MOTOR 5 SPEED MANUAL TRANSMISSION SWAP ECU, The JDM Honda Civic TYPE R CTR EK9 B16B 1.6L DOHC VTEC engine stands as one of the most revered powertrains in the world of Japanese Domestic Market (JDM) enthusiasts. This engine, found in the legendary Honda Civic Type R EK9, has gained a reputation for its performance, reliability, and engineering excellence. Whether you’re an automotive enthusiast, a collector, or just someone interested in learning about the engine, this article will provide a comprehensive overview of the B16B and its place in automotive history.

The Evolution of the Honda Civic Type R (CTR)

Before diving into the specifics of the B16B engine, it’s important to understand its context within the Honda Civic Type R lineage. The EK9 Civic Type R, produced between 1997 and 2000, was the first to bear the Type R badge in the Civic lineup. The Type R series, known for its sporty character, superior handling, and lightweight construction, quickly became an icon in the compact performance car segment.

The EK9 Civic Type R was engineered for enthusiasts who demanded a high-performance, street-legal car that could deliver track-like performance. It was designed to be lightweight, with stripped-down features to enhance driving dynamics. The B16B engine played a crucial role in the success of the EK9, making it a sought-after model among car enthusiasts and collectors alike.

The B16B Engine: A Closer Look

At the heart of the Honda Civic Type R EK9 is the B16B engine, a 1.6-liter DOHC (Double Overhead Cam) unit that utilized VTEC technology. The engine is known for its high-revving nature and outstanding performance for its size, making it one of the most exciting engines in the JDM community. Here’s an in-depth breakdown of the key features and specifications of the B16B engine:

1. Displacement and Architecture

• Engine Type: Inline-4
• Displacement: 1.6L (1595cc)
• Bore x Stroke: 81 mm x 77.4 mm
• Compression Ratio: 10.8:1
• Valvetrain: DOHC 16V (16 valves in total)

2. VTEC Technology

Honda’s Variable Valve Timing and Lift Electronic Control (VTEC) system is one of the defining features of the B16B engine. VTEC allows the engine to operate with two camshaft profiles — one for low-speed fuel efficiency and another for high-speed performance. The system ensures smooth operation at lower revs but switches to a more aggressive cam profile at higher RPMs for increased power.

3. Power and Performance

• Max Power Output: 185 hp at 8,200 rpm
• Max Torque: 116 lb-ft at 7,500 rpm
• Redline: 8,800 rpm (an impressive limit for a naturally aspirated engine)
• The engine’s high-revving nature made it a true performance machine, and its relatively small displacement didn’t limit its ability to produce thrilling acceleration and speed.

4. Engine Management and Fueling

• The P72 ECU is used in the EK9 Type R to manage the B16B engine’s operation, optimizing fuel delivery, ignition timing, and VTEC engagement for maximum performance. The engine is designed to provide a smooth powerband with excellent throttle response.

5. Lightweight Construction

• One of the standout aspects of the B16B is its lightweight construction. Honda used a variety of materials to keep the engine as light as possible without compromising performance. The engine block, cylinder head, and components are designed for maximum rigidity and durability, ensuring that the engine performs consistently under high-stress conditions.

The Honda Civic Type R EK9: A True Driving Experience

The Honda Civic Type R EK9 is often regarded as one of the most pure and exhilarating cars in Honda’s history. It combines the lightweight chassis of the Civic with the high-revving power of the B16B engine, resulting in an agile and responsive car that could outperform many of its competitors on twisty roads and race tracks. Enthusiasts often praise the EK9 Type R for its precise handling, exceptional steering response, and overall track-oriented performance.

The car’s limited edition status, along with its relatively low production numbers, makes the EK9 Civic Type R a highly desirable model among collectors. Its reputation for being a driver’s car has only grown over the years, making it a staple of JDM culture and a favorite for tuning and modifications.

FAQs: Everything You Need to Know About the B16B and the EK9

Q1: What does “VTEC” stand for in the Honda B16B engine?

• A1: VTEC stands for Variable Valve Timing and Lift Electronic Control. It is a system developed by Honda that allows the engine to switch between different camshaft profiles to improve fuel efficiency at low speeds and increase power at high RPMs.

Q2: What makes the B16B engine so special?

• A2: The B16B is special due to its high-revving nature, outstanding power output relative to its size, and the use of Honda’s VTEC technology. It’s a well-balanced engine that offers an exciting driving experience, especially when paired with the lightweight chassis of the EK9 Civic Type R.

Q3: How much horsepower does the B16B engine produce?

• A3: The B16B engine produces 185 horsepower at 8,200 rpm. This was an impressive figure for a 1.6L naturally aspirated engine and contributed to the Type R’s reputation for performance.

Q4: How high can the B16B engine rev?

• A4: The B16B engine has a redline of 8,800 rpm, which is one of the highest rev limits for a naturally aspirated engine of its size. This high-revving characteristic is part of what makes the engine so thrilling to drive.

Q5: What type of fuel does the B16B engine require?

• A5: The B16B engine typically requires premium unleaded fuel (high-octane fuel) for optimal performance, as it is designed to run at higher compression ratios and RPMs.

Q6: Is the B16B engine suitable for modifications?

• A6: Yes, the B16B engine is popular among tuners for modifications. Common upgrades include intake and exhaust systems, camshafts, pistons, and engine management systems. However, it’s important to note that any modifications should be done carefully to preserve engine integrity and reliability.

Q7: Can the B16B engine be swapped into other vehicles?

• A7: Yes, the B16B engine is often swapped into other Honda models, particularly older Civics and the CRX. The engine’s compatibility with other Honda models makes it a popular choice for enthusiasts looking to enhance their car’s performance.

Q8: Is the B16B engine still available for purchase?

• A8: The B16B engine is no longer in production, as it was only made available for the Honda Civic Type R EK9 between 1997 and 2000. However, used engines can still be found in the market, often from reputable JDM importers and dismantlers.

Conclusion: A Legacy of Performance

The Honda Civic Type R EK9 B16B 1.6L DOHC VTEC engine is a true piece of automotive history, combining exceptional engineering, high-revving performance, and the legendary VTEC technology. Its place in the hearts of JDM enthusiasts remains strong, and the EK9 Type R continues to be celebrated for its pure driving experience. Whether you’re restoring an EK9, swapping the B16B into another chassis, or simply appreciating Honda’s racing-inspired technology, the B16B is a symbol of automotive passion that stands the test of time.
